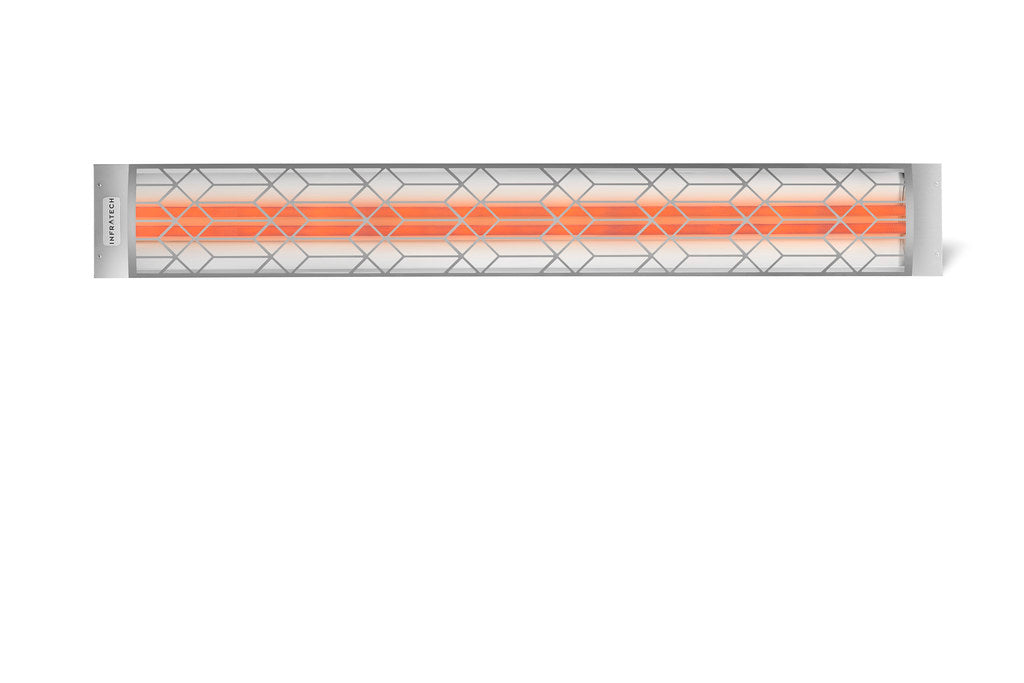

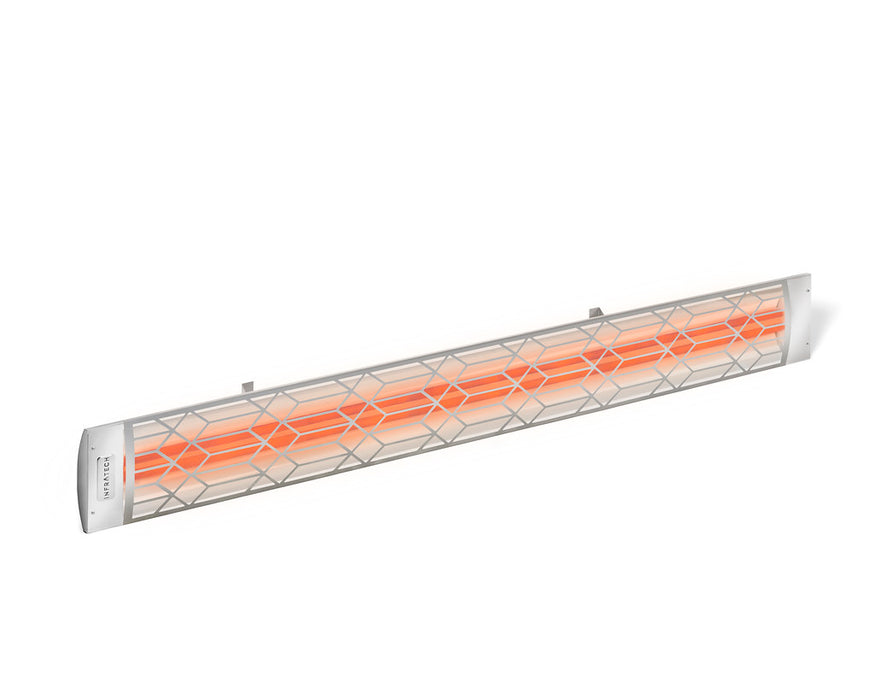

Infratech CD4027MG2 Dual Element Heater w/ SS Marine Grade Craftsman Motif
Infratech CD Series Dual Element with Craftsman Motif CD4027MG2 4000 Watts 277V 14.44 Amps Infrared Electric Patio Heater 39 x 8.19 x 2.5 in. Stainless Steel Marine Grade Color
Infratech Part Number: 21-4130 MG
AVAILABILITY and Processing Time: This item ships out within 6 to 10 business day(s), from Irvine, CA.
30-Day Return Policy applies to all items at InfratechHeating.com. See Return Policy
Introducing the Infratech CD Series Dual Element with Craftsman Motif CD4027MG2 4000 Watts 277V 14.44 Amps Infrared Electric Patio Heater 39 x 8.19 x 2.5 in. Stainless Steel Marine Grade Color. This is a 4000 Watt 277 Volt 14 Amp heater. At 39 inches long, this heater will heat an area of 8 by 10 feet at a mounting height of between 8 and 10 feet. The CD Series heaters may be surface or flush mounted, however, it is the preferred model for surface mounting due to its more slim and contemporary "C" shape. In comparison, the larger bodied WD Series is better suited for flush mount installation, providing for better ventilation within the ceiling pocket. This heater is available in Stainless Steel and eight additional colors as well as a Marine Grade Option. Compatible controls for this heater are the Duplex stack switch and all Custom Control options. Please keep in mind that the available Infratech heater voltages of 120, 208 and 240 are typical for residential properties, while 277 and 480 are more common for commercial. If you're not sure which voltage to choose, please consult with a licensed electrician. These heaters come with a full 3 year warranty from Infratech.

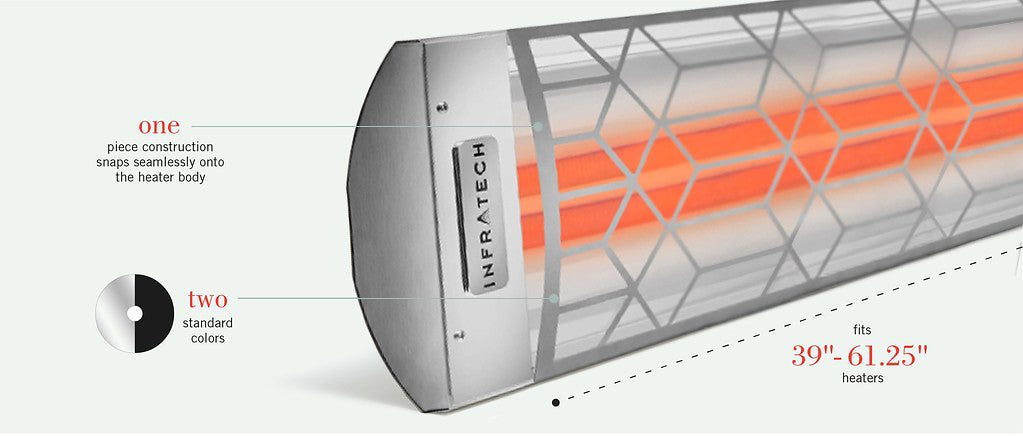

CRAFTSMAN MOTIF - Craftsman C-Series single element heater with Craftsman Motif laser-cut decorative metal fascia.
AVAILABILITY - Available in two lengths (39” and 61.25”) and two standard colors (stainless and black).
POWER SUPPLY - Available in wattages ranging from 2,000 - 4,000, and three voltages: 208, 240, 277.
MARINE GRADE - Marine UpGrade heaters incorporate more robust anti-corrosive 316 stainless steel. This offers enhanced protection for the harshest environments, including coastal, alpine, windy, humid and other demanding conditions.
UL/CUL LISTED - All Infratech heaters are UL/CUL listed for Indoor / Outdoor use.
NOTE - Expert installation required, please consult a licensed electrician. Motif Collection cannot be used in a recessed applications and is not compatible with Infratech's Flush Mount Frames.
Color: Stainless Steel Marine Grade
Product Size: 39 in. x 8.19 in. x 2.5 in.
Product Weight: 16 lb(s.)
Shipping Box Dimensions: 42 in. x 9 in. x 8 in.
Shipping Weight: 16 lb(s.)
Material: 316 Stainless Steel
Made in: USA
Shipping Origin: Irvine, CA
Product Warranty:
3-Year Factory Warranty + 1 Year Extension from InfratechHeating.com
Delivery time
This INFRATECH item ships UPS Ground from Irvine, CA and will take from 1-5 business days travel time, depending on your location within the Continental US.
